Slide
Gate Valve |
| |
 |
| |
 |
| |
|

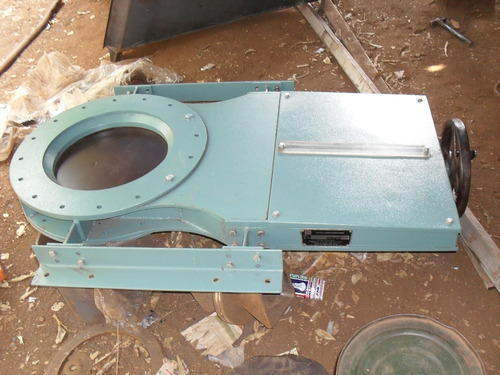

The Digidale slide gate valves are excellent in
industries where isolation of solids is needed.
Slide gate valves are designed to shut off the flow
of product from outlets of dry bulk storage bins,
silos, conveyors and other discharge points. |
| |
| You can actuate slide gate
valves in a number of ways: pneumatically for fast
action, hydraulically for power, electrically for
precise positioning and manually for maintenance and
flow control. |
| |
Features -
- Heavy duty Isolation.
- Fabricated construction in no.of materials.
- Blade sealing liner are selected according to
material being handled.
- Manual/Pneumatic or motorized actuation.
- Compact Design,Easy to install & maintain.
- Built to handle eminent temperature.
- Pressure tight support frame.
- Minimal leakage and free flow of material
without clogging.
- Designed to meet International standard.
|
| Applications - |
- This valves are designed to handle bulk materials
for all industrial application like countinuos and
intermittent. There application includes, Pulp and
Paper, Power plants, Wastewater treatment plants,
Chemical plants, Food and Beverage., Bulk handling,
Mining etc.
|
| Specifications - |
| |
|
Model No. |
Size (In Inches.) |
Actuator Type |
| DSL
1 |
6 ” X 6 ” |
R.-
Rack & PinionOperated |
| DSL 2 |
8 ” X 8 ” |
| DSL 3 |
10 ” X10 ” |
| DSL 4 |
12 ” X12 ” |
| DSL 5 |
14 ” X14 ” |
| DSL
6 |
16 ” X16 ” |
P.-
Pneumatic Actuator |
| DSL 7 |
18 ” X18 ” |
| DSL 8 |
20 ” X 20 |
| DSL 9 |
22 ” X 22 |
| DSL
10 |
24 ” X 24” |
E.-Electrical Actuator |
| DSL 11 |
26” X 26” |
| DSL 12 |
28” X 28” |
| DSL 13 |
30” X 30” |
| DSL
14 |
32” X 32” |
.-Lead Screw
Operated |
|
| |
|
