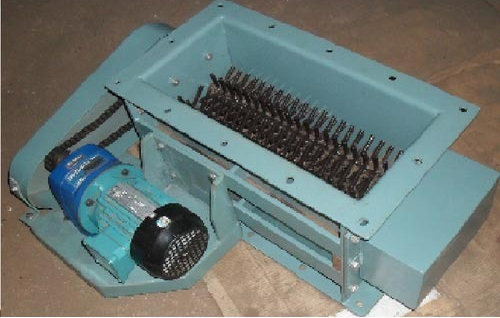

Lump Breaker


Lump Breaker


The Lump Breaker is designed for breaking up friable lumps & agglomerates that have formed in dry powders and granules.

Use & Application -
  • Lump Breakers are commonly used to process powders prior to pneumatic conveying, sifting, blending, feeding and can be installed in chutes ducts & conveying systems
  • They can also be fitted with a hopper for batch operation
  • Lump breakers can reduce material deliberately compacted in densification process or in recycling or waste disposal application
The lump breakers have been applied in industries such as Food, Minerals, Chemicals, Fertilizers, Plastics

Benifits -

MODEL NO. SIZE( Rd-A & Sq-B) CAPACITY(Cu.Ft/Min
DLB 1-A/B 150 mm 6
DLB 2-A/B 200 mm 8
DLB 3-A/B 250 mm 12
DLB 4-A/B 300 mm 18
DLB 5-A/B 350 mm 25
DLB 6-A/B 400 mm 33
